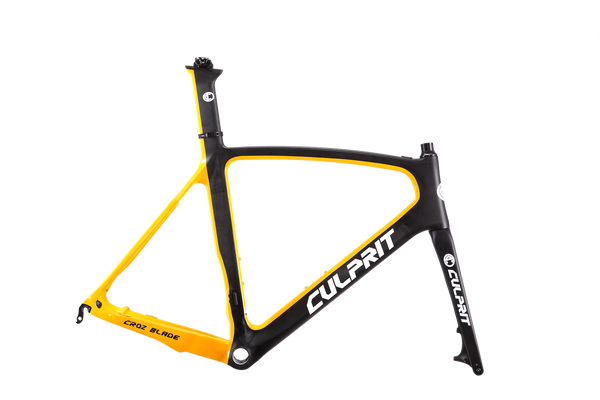

FRAME CULPRIT CROZ BLADE FRAME
- TORAY 800 CARBON
- AERODYNAMIC TUBE SHAPES WITH ASSYMETIC DESIGN
- CABLE ROUTING ENTERING ON THE TOP TUBE BEHIND THE STEM
- SHIMANO BB86
- 135 MM OLD SPACING WITH ADAPTORS BACK TO 130 MM FOR ROAD RIM USE
- DESIGNED FOR SHIMANO DIRECT MOUNT RIM BRAKES OR POST MOUNT DISC BRAKE CALIPER (140 MM ROTOR)
- FRAME WEIGHT ( TBD) WEIGHT VARIES BY SIZE AND PAINTING REQUEST
FORK
- TORAY 800 ONE PIECE MONOCOQUE DESIGN
- REPLACEABLE 15 MM THRU AXLE DESIGN
- .POST DISC BRAKE DESIGNED FOR 160 MM ROTORS
- FORK WEIGHT ( 425 GRAMS UNPAINTED) WEIGHT VARIES PAINTING REQUEST
HEADSET: CULPRIT CARBON HEADSET
SEATPOST CULPRIT AERO CARBON POST WITH RITCHEY ADJUSTABLE DESIGN (COMES WITH 7X7 SADDLE RAIL CLAMP, OTHER OPTIONS CAN BE ORDERED FROM RITCHEY) COMES WITH DI2 SEATPOST BATTER HOLDER
FRAME SIZES 46,49,52,55,58 CM
COLOR PAINT TO ORDER FROM COLOR SELECTOR (link to color selector)
WEIGHT
